Industrial Metal 3D Printer

JUPITER + MELTIO INTEGRATION = COMPLEX PARTS WITHIN HOURS; NOT DAYS

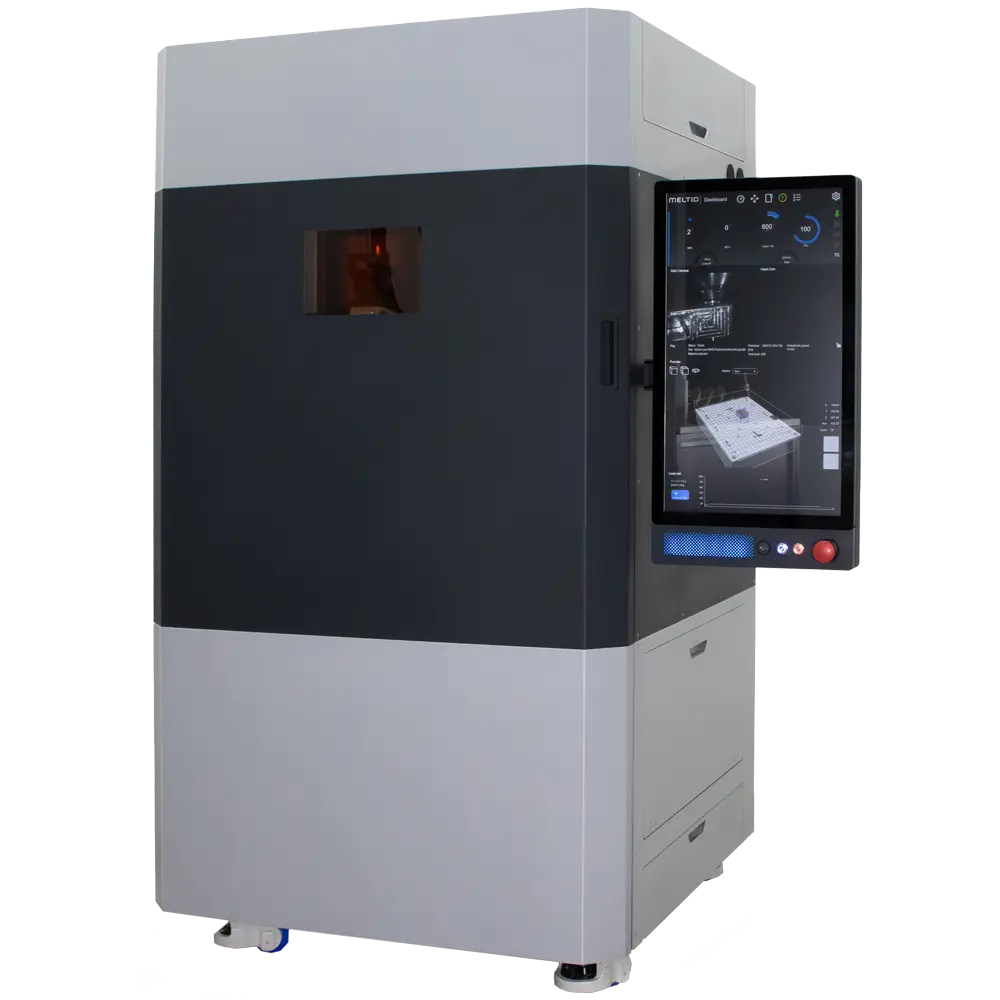

M600

Expand your manufacturing capabilities with blue lasers, a large build volume, and a fully inert chamber for the best material properties. Printing is easier than ever thanks to the improved process control, advanced sensors and live monitoring allowing you to produce parts consistently 24/7.

The Meltio M600, with its built-in 3-axis probing system and work-holding solutions, is the ideal companion for your manufacturing operations.

Benefit summary of M450 Powered by Meltio:

The All-in-one Printing Platform, the Meltio M600 allows to printing of large parts or a batch of small parts in a row, simultaneously. Improved process control for stability and repeatibility.
  • Production-Ready: Bigger parts, higher deposition rate, larger material range, inert print chamber, less maintenance, and built-in work holding solutions.
  • Easy-To-Use: Minimized operator interaction thanks to advanced sensor solutions, simplified UI, dedicated slicer, and zero point clamping system.
  • Reliable: Boosted wire feeding system, fiber-free deposition head, improved process control systems, and much more.
  • Reduced Maintenance: The newly developed deposition head removes the need for laser alignment, while the motion system has been improved to ensure maximum lifetime.
Augmented energy delivery efficiency reduces electricity consumption, making it a cost-saving process, thanks to the blue laser diodes.
  • Blue Light: 450 nm light improves energy absorption and printing efficiency across the metal material spectrum.
  • No Calibration: It arrives aligned from the factory for maximum printing repeatability and minimal maintenance.

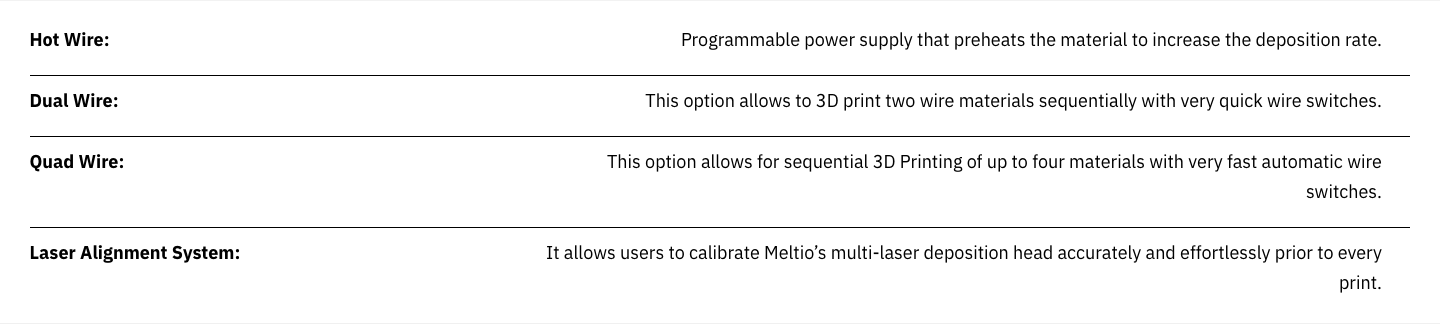

  • Hotwire Compatible: The deposition head is developed to used with an optional hotwire supply to increase the deposition rate and allow for more materials to be processed.
  • High Efficiency: The energy consumption per component is reduced significantly, resulting in a greener and more cost-efficient process.

Product Download

Download M600 Powered by Meltio

Product brochure

Download Brochure

Product Gallery

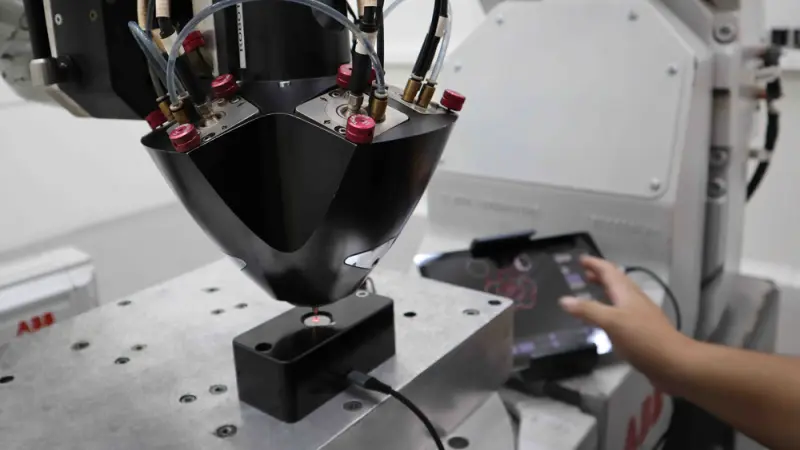

Laser-calibration-system-meltio

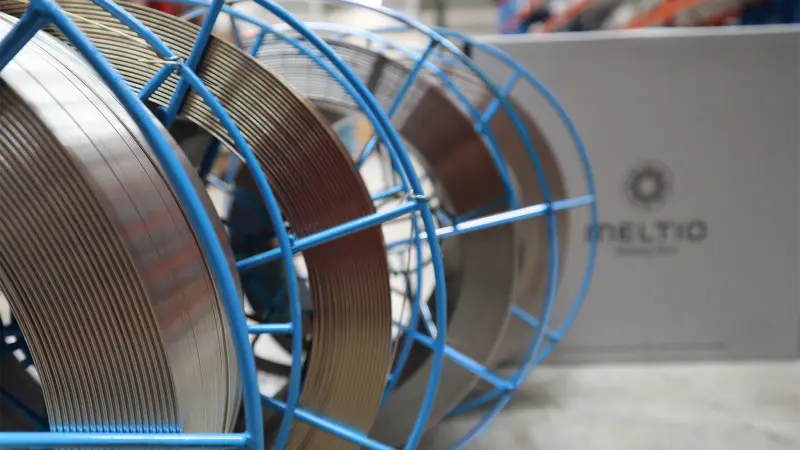

materials-packaging-s

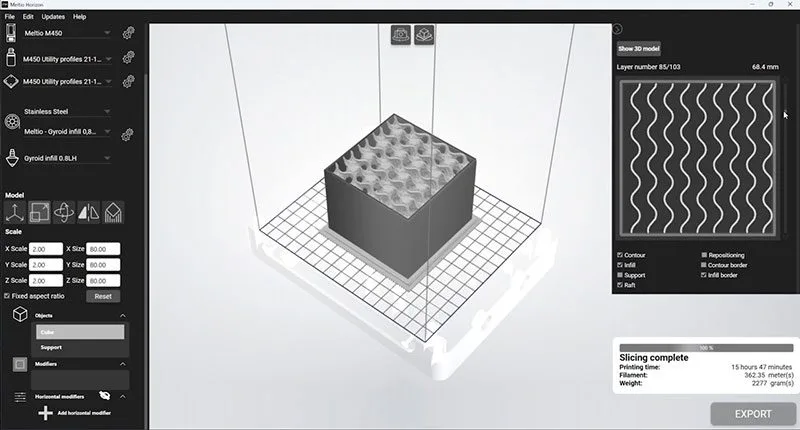

meltio-horizon-program-

Product Technical Data

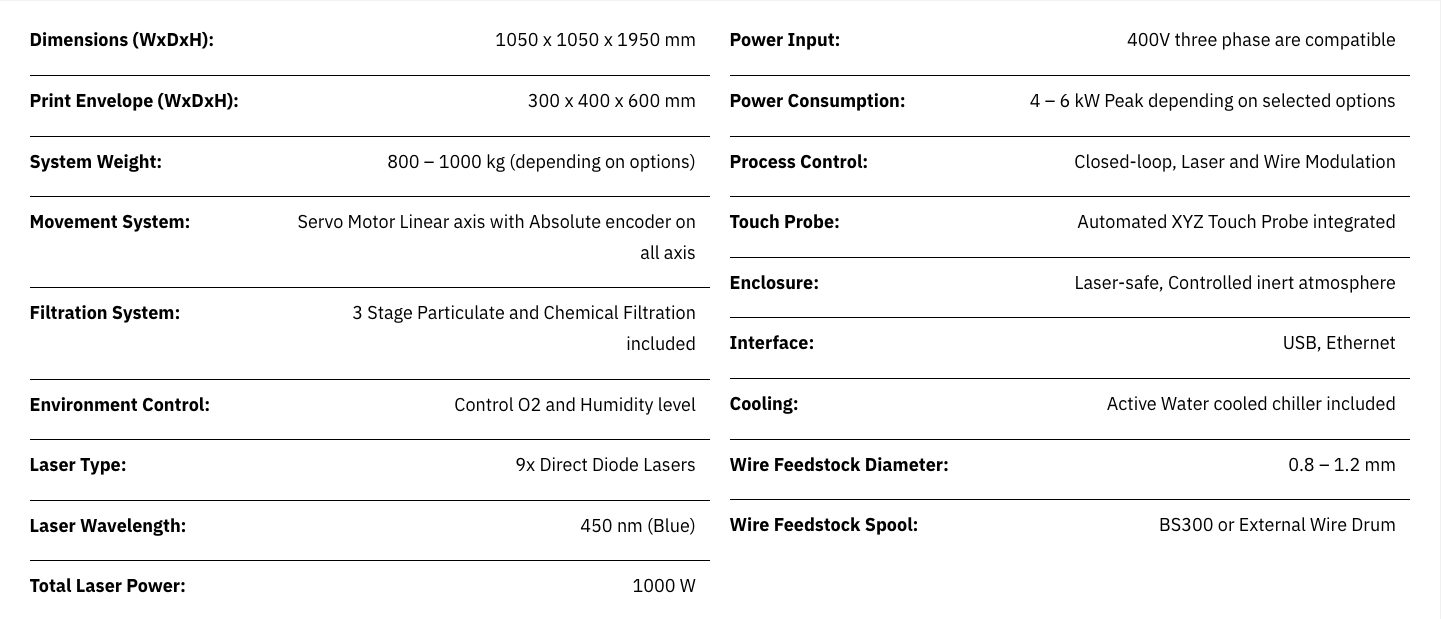

General Specifications

*Copper & Aluminum parameters under development.
