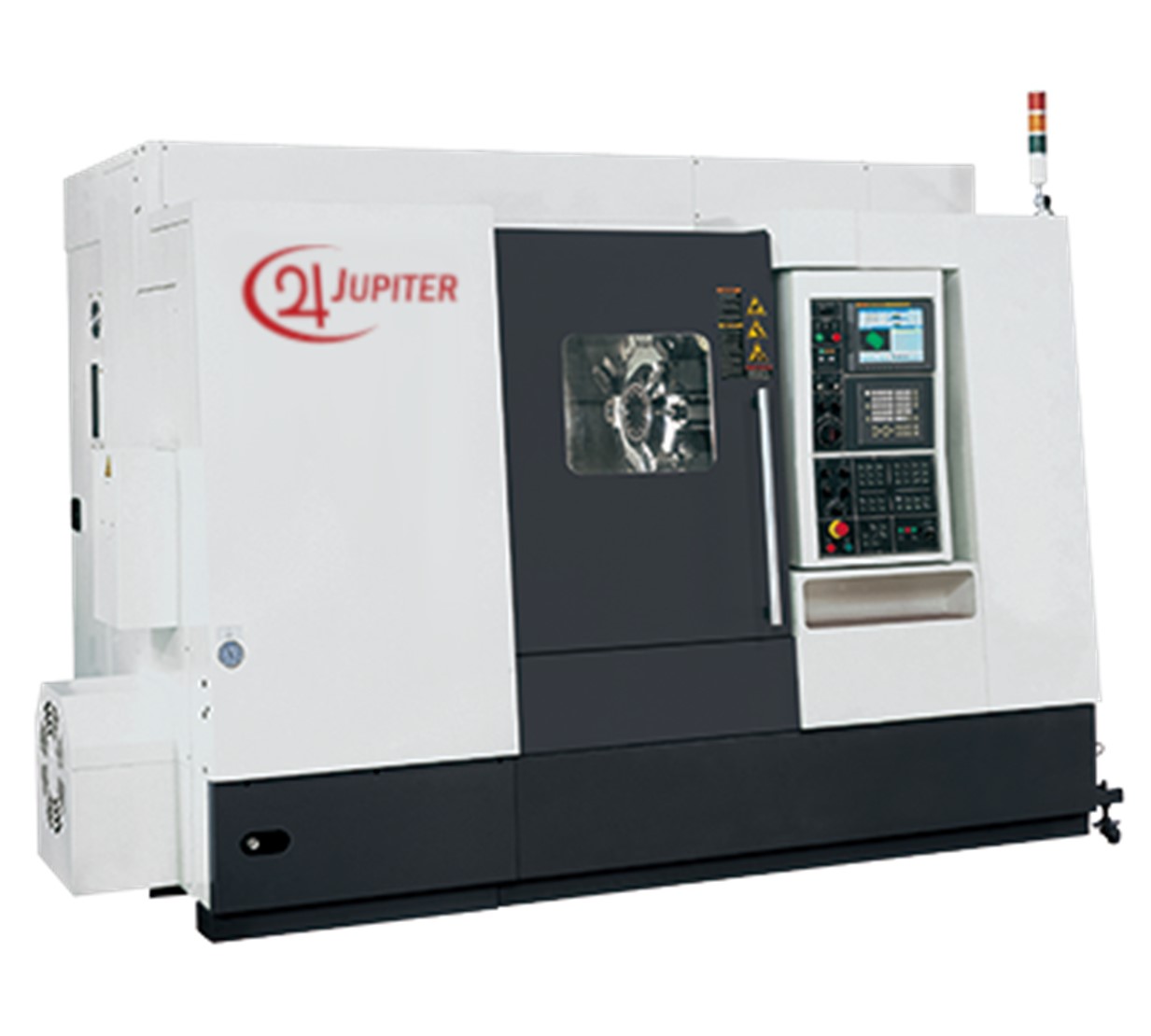

The Jupiter JHL series of turning centers is a compact, premium machine tool, designed to feature maximum capacity and performance in many demanding industries.
The high performance, no-compromise platform satisfies automotive, medical, defense and many other critical applications.
The JHL series is engineered with a 45 Degree Slant Bed for an excellent foundation. Torque tube Meehanite casting structure can withstand greater stress without deforming and provides maximum vibration damping. High Precision box ways are integral of the casting for maximum rigidity and accuracy.
Robust pre-tensioned ball screws for reliable precision on X/Z axes. Powerful Fanuc motor provides 20 HP on the turning spindle with 2” bar capacity standard. The optional BMT55 live tool servo turret increases your production flexibility with 7.5hp and 6,000 available rpm.
Direct feedback glass scales are available as options for the highest consistency and accuracy with maximum reliability.
➢ The WLMD process eliminates the safety hazards of powder deposition methods
➢ Reduces material costs as parts are printed to a “near net finish” (within .040”)
eliminating removal of excess material, and reducing Cycle Time, labor, and
power consumption costs.
➢ Eliminates costs of Work Holding fixtures & reduces Set Up time.
➢ A part can be made using two different metals, i.e. mild steel as a core metal
while the outside is finished with titanium using the “Twin Wire” function.
➢ WLMD parts have fewer voids – 99.9998% denser than forgings or castings.
➢ Enables parts to be made with internal passageways for gas or liquid flow.
➢ Allows prototype parts to be made in hours rather than days or weeks.
➢ No billet needed; all parts can be printed from wire, eliminating sawing and
reducing required storage.
| SPECIFICATIONS | UNIT | HMC-380 | HMC-400 | HMC-500 | |
|---|---|---|---|---|---|
| CNC SYSTEM | Control | --- | Fanuc 0i-MF+ | Fanuc 0i-MF+ | Fanuc 0i-MF+ |
| Configuration | --- | 15" Touchpanel | 15" Touchpanel | 15" Touchpanel | |
| Motors & Amps | --- | Alpha Class | Alpha Class | Alpha Class | |
| TRAVEL | X Axis | in | 19.69 | 23.62 | 31.50 |
| Y Axis | in | 16.54 | 19.69 | 31.50 | |
| Z Axis | in | 14.96 | 19.69 | 31.50 | |
| MOTION | Way Type | --- | Roller Linear | Roller Linear | Roller Linear |
| Rapid Traverse - X Axis | ipm | 1,890 | 2,362 | 2,362 | |
| Rapid Traverse - Y Axis | ipm | 1,890 | 2,362 | 2,362 | |
| Rapid Traverse - Z Axis | ipm | 1,890 | 2,362 | 2,362 | |
| PALLET | Pallet Count | --- | 1 | 2 | 2 |
| Width | in | 14.96 | 15.75 | 19.69 | |
| Depth | in | 14.96 | 15.75 | 19.69 | |
| Minimum Index | deg | 0.001 | 0.001 | 0.001 | |
| Max Load Per Pallet | lb | 440 | 880 | 1,320 | |
| SPINDLE | Drive Type | --- | Built-in | Built-in | Built-in |
| Motor Power | hp | 30 | 30 | 30 | |
| Taper | --- | CAT-40 DC | CAT-40 DC | CAT-40 DC | |
| Speed | rpm | 12,000 | 12,000 | 12,000 | |
| Optional Speed | rpm | 15,000 | 15,000 | 15,000 | |
| ATC | Capacity | Tools | 24 | 40 (60) | 40 (80) |
| Max Tool Weight | lb | 15.4 | 15.4 | 24.2 | |
| Max Tool Dia. - Adj. Occupied | in | 3.15 | 2.95 | 3.74 | |
| Max Tool Dia. - Adj. Empty | in | 4.92 | 4.92 | 7.87 | |
| Max Tool Length | in | 9.84 | 11.81 | 15.75 | |
| DIMENSIONS | Machine Weight | lb | 7,700 | 12,100 | 29,700 |
| Width | in | 59 | 96 | 122 | |
| Depth | in | 99 | 141 | 240 | |
| Height | in | 97 | 108 | 119 | |
| Current | kVA | 30 | 40 | 45 | |
| SPECIFICATIONS | UNIT | HMC-380 | HMC-400 | HMC-500 | |
|---|---|---|---|---|---|
| CNC SYSTEM | Control | --- | Fanuc 0i-MF+ | Fanuc 0i-MF+ | Fanuc 0i-MF+ |
| Configuration | --- | 15" Touchpanel | 15" Touchpanel | 15" Touchpanel | |
| Motors & Amps | --- | Alpha Class | Alpha Class | Alpha Class | |
| TRAVEL | X Axis | mm | 500 | 600 | 800 |
| Y Axis | mm | 420 | 500 | 800 | |
| Z Axis | mm | 380 | 500 | 800 | |
| MOTION | Way Type | --- | Roller Linear | Roller Linear | Roller Linear |
| Rapid Traverse - X Axis | m/min | 48 | 60 | 60 | |
| Rapid Traverse - Y Axis | m/min | 48 | 60 | 60 | |
| Rapid Traverse - Z Axis | m/min | 48 | 60 | 60 | |
| PALLET | Pallet Count | --- | 1 | 2 | 2 |
| Width | mm | 380 | 400 | 500 | |
| Depth | mm | 380 | 400 | 500 | |
| Minimum Index | deg | 0.001 | 0.001 | 0.001 | |
| Max Load Per Pallet | kg | 200 | 400 | 600 | |
| SPINDLE | Drive Type | --- | Built-in | Built-in | Built-in |
| Motor Power | kW | 22 | 22 | 22 | |
| Taper | --- | CAT-40 DC | CAT-40 DC | CAT-40 DC | |
| Speed | rpm | 12,000 | 12,000 | 12,000 | |
| Optional Speed | rpm | 15,000 | 15,000 | 15,000 | |
| ATC | Capacity | Tools | 24 | 40 (60) | 40 (80) |
| Max Tool Weight | kg | 7 | 7 | 11 | |
| Max Tool Dia. - Adj. Occupied | mm | 80 | 75 | 95 | |
| Max Tool Dia. - Adj. Empty | mm | 125 | 125 | 200 | |
| Max Tool Length | mm | 250 | 300 | 400 | |
| DIMENSIONS | Machine Weight | kg | 3,500 | 5,500 | 13,500 |
| Width | mm | 1500 | 2420 | 3100 | |
| Depth | mm | 2500 | 3600 | 6100 | |
| Height | mm | 2450 | 2750 | 3000 | |
| Current | kVA | 30 | 40 | 45 | |
Jupiter partners with the world’s leading CNC system providers to deliver whatever platform you prefer.
