No frills 4-axis perfection

Flexible, Powerful, Exacting

For complex parts with multiple operations and large batch production, upgrade to a Jupiter horizontal machining center today. Jupiter HMCs pack power and finesse into compact footprints. Hydraulic linkages in each pallet support advanced tombstone configurations. Built-in spindles with Japanese motors and bearings ensure rapid cycle times.

Customer-driven Configuration Flexibility

Jupiter partners with the world’s leading CNC system providers to deliver whatever platform you prefer.

High Performance Spindles

All Jupiter spindles feature Japanese bearings and come in dual-contact / Big Plus taper as part of their standard configuration. Each spindle is hand-built by master craftsmen before being precision balanced and run-in for over 72 hours. Direct drive and belt-driven styles are available depending on your application needs.

Premium Ballscrews & Linear Guides

All Jupiter machines come with C1-class premium super accurate ballscrews and roller linear guides manufactured by motion industry leaders for the most demanding applications.

Incredible Accuracy

All Jupiter machine tools are laser pitch error compensated and ball bar inspected both before leaving the factory and at time of installation on the customer’s floor. You deserve micron precision.

Faultless Reliability

Jupiter components are always chosen with long-term reliability in mind, so that you don’t need to keep reliability in your mind. New Jupiter machines come standard with a two year manufacturer’s warranty… but you won’t need it!

Product Gallery

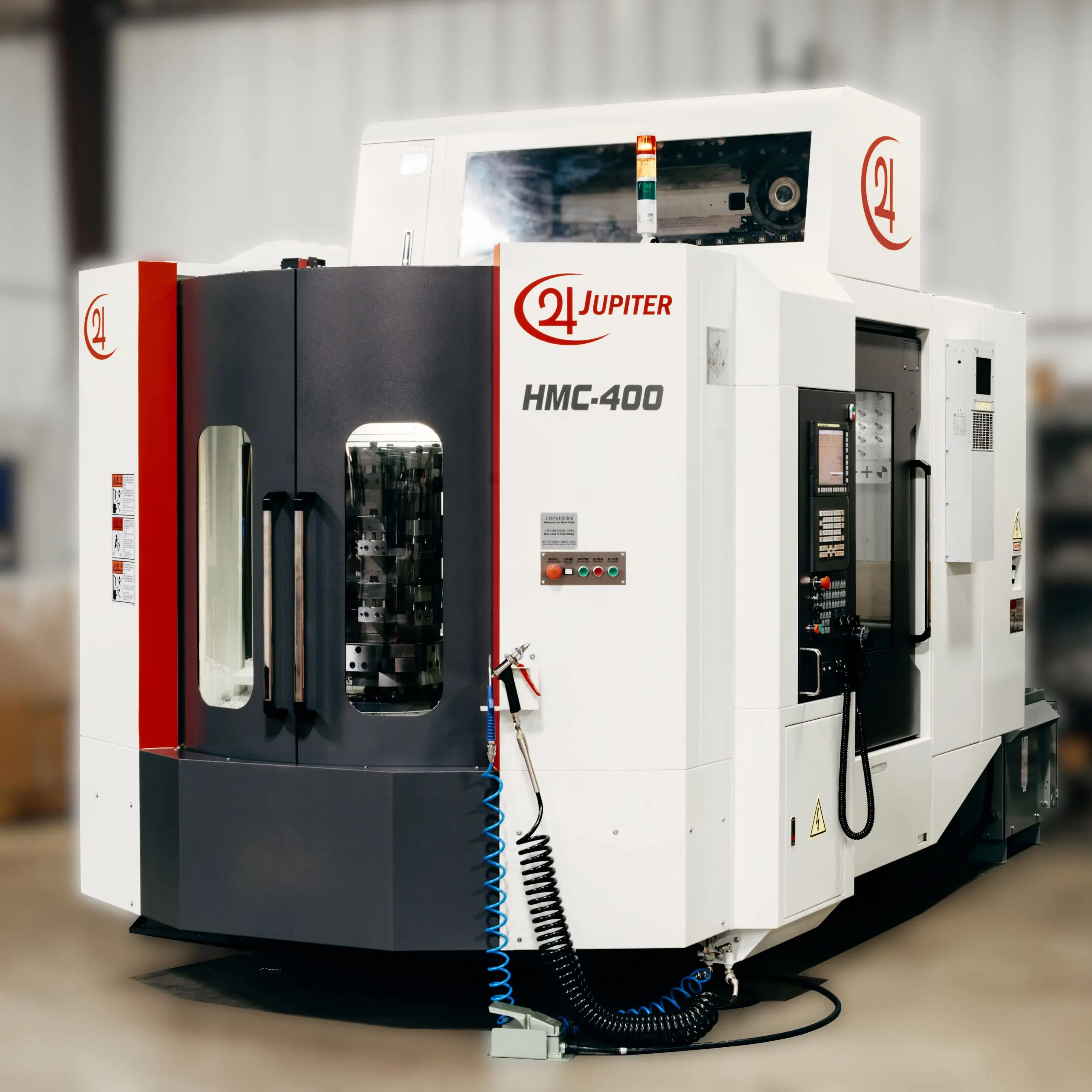

HMC-400

Specifications, Standard Features, & Options

Six hydraulic linkages in each pallet support programmable tombstones without the need for hydraulic hoses all over the place.

Jupiter’s HMC series provides micron precision and repeatability at shockingly good prices. All key components are imported from Japan or Germany. Each machine is designed with the operator and maintenance team firmly in mind – PM areas are easy to access and clean or refill, control panels are clear and easy to operate, and critical controls are duplicated on the front of the machine.

Just like the HMC-500 above, all Jupiter HMCs are space optimized to maximize your shop’s productivity per square foot.

SPECIFICATIONS UNIT HMC-380 HMC-400 HMC-500
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class
TRAVEL X Axis in 19.69 23.62 31.50
Y Axis in 16.54 19.69 31.50
Z Axis in 14.96 19.69 31.50
MOTION Way Type Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis ipm 1,890 2,362 2,362
Rapid Traverse – Y Axis ipm 1,890 2,362 2,362
Rapid Traverse – Z Axis ipm 1,890 2,362 2,362
PALLET Pallet Count 1 2 2
Width in 14.96 15.75 19.69
Depth in 14.96 15.75 19.69
Minimum Index deg 0.001 0.001 0.001
Max Load Per Pallet lb 440 880 1,320
SPINDLE Drive Type Built-in Built-in Built-in
Motor Power hp 30 30 30
Taper CAT-40 DC CAT-40 DC CAT-40 DC
Speed rpm 12,000 12,000 12,000
Optional Speed rpm 15,000 15,000 15,000
ATC Capacity Tools 24 40 (60) 40 (80)
Max Tool Weight lb 15.4 15.4 24.2
Max Tool Dia. – Adj. Occupied in 3.15 2.95 3.74
Max Tool Dia. – Adj. Empty in 4.92 4.92 7.87
Max Tool Length in 9.84 11.81 15.75
DIMENSIONS Machine Weight lb 7,700 12,100 29,700
Width in 59 96 122
Depth in 99 141 240
Height in 97 108 119
Current kVA 30 40 45
SPECIFICATIONS UNIT HMC-380 HMC-400 HMC-500
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class
TRAVEL X Axis mm 500 600 800
Y Axis mm 420 500 800
Z Axis mm 380 500 800
MOTION Way Type Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis m/min 48 60 60
Rapid Traverse – Y Axis m/min 48 60 60
Rapid Traverse – Z Axis m/min 48 60 60
PALLET Pallet Count 1 2 2
Width mm 380 400 500
Depth mm 380 400 500
Minimum Index deg 0.001 0.001 0.001
Max Load Per Pallet kg 200 400 600
SPINDLE Drive Type Built-in Built-in Built-in
Motor Power kW 22 22 22
Taper CAT-40 DC CAT-40 DC CAT-40 DC
Speed rpm 12,000 12,000 12,000
Optional Speed rpm 15,000 15,000 15,000
ATC Capacity Tools 24 40 (60) 40 (80)
Max Tool Weight kg 7 7 11
Max Tool Dia. – Adj. Occupied mm 80 75 95
Max Tool Dia. – Adj. Empty mm 125 125 200
Max Tool Length mm 250 300 400
DIMENSIONS Machine Weight kg 3,500 5,500 13,500
Width mm 1500 2420 3100
Depth mm 2500 3600 6100
Height mm 2450 2750 3000
Current kVA 30 40 45
  • Air gun
  • Automatic lubrication
  • Automatic power-off
  • Automatic Tool Changer
  • Chip augers, dual spiral type along Z-axis
  • Chip conveyor, chain type
  • Chip conveyor, magnetic
  • Coolant gun
  • Coolant system
  • Coolant thru spindle w/ filter and tank @ 300 PSI or 1000 PSI
  • Enclosed splash guard
  • Fanuc 0i-MF Plus with 15” LCD Touchscreen
  • Fanuc Data Server (2 GB)
  • Hydraulic pallet clamping
  • Hydraulic tombstone linkages (6) on each pallet
  • Leveling bolts and pads
  • Oil mist collector
  • Oil skimmer
  • Pallet changer (HMC-400, HMC-500)
  • Remote MPG
  • Rigid tapping
  • RS-232, USB, and CAT-5 interfaces
  • Sidewall washdown
  • Spindle air blast
  • Spindle oil cooler
  • Spindle – 12,000 rpm Built-in CAT-40 Dual Contact (Big Plus)
  • Spindle – 15,000 rpm Built-in CAT-40 Dual Contact (Big Plus)
  • Toolbox & adjustment tools
  • Transformer
  • Work air blast
  • Work lamp

Machine specifications published for reference only and are subject to change without notice. Not all features available on all models. Always see your local Jupiter representative for up-to-date information.
