Everything you need in a 3-axis mill

Powerful, Precise, Reliable

Carefully designed to balance speed, precision, and power, the Jupiter vertical machining center series is the mainstay of your manufacturing operations. Jupiter VMCs are available across a wide range of sizes in both high-speed roller linear guide and heavy-duty Rulon-coated boxway configurations to match your every need.

Customer-driven Configuration Flexibility

Jupiter partners with the world’s leading CNC system providers to deliver whatever platform you prefer.

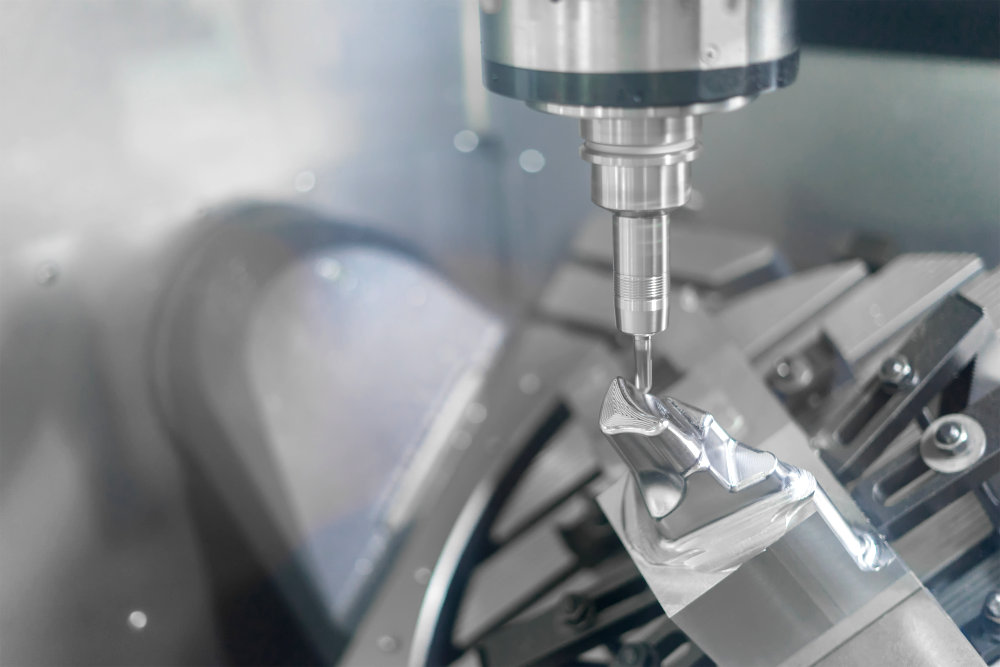

High Performance Spindles

All Jupiter spindles feature Japanese bearings and come in dual-contact / Big Plus taper as part of their standard configuration. Each spindle is hand-built by master craftsmen before being precision balanced and run-in for over 72 hours. Direct drive and belt-driven styles are available depending on your application needs.

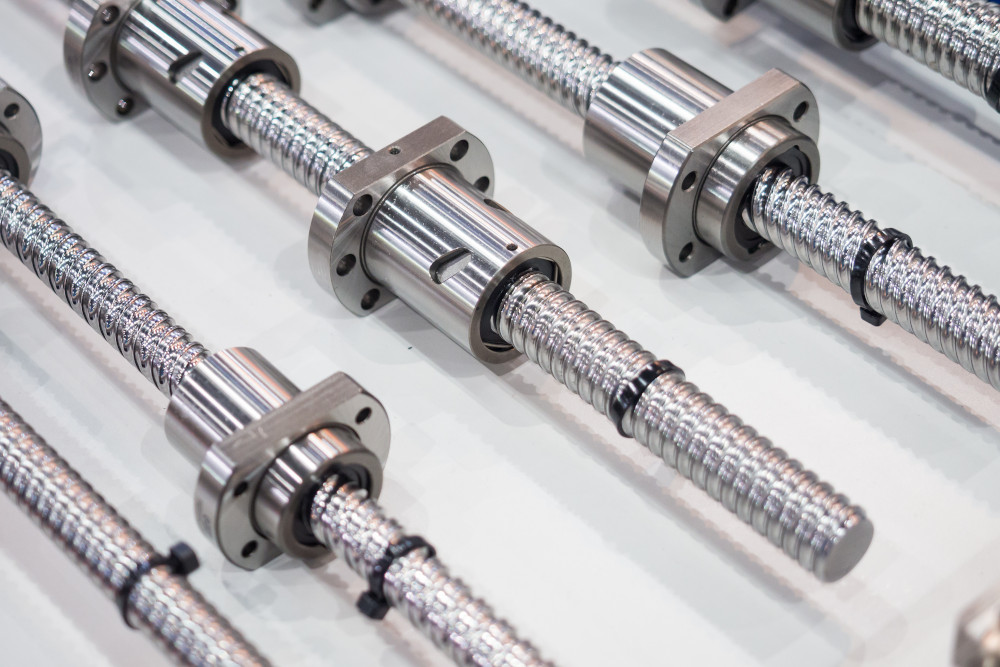

Premium Ballscrews & Linear Guides

All Jupiter machines come with C1-class premium super accurate ballscrews and roller linear guides manufactured by motion industry leaders for the most demanding applications.

Incredible Accuracy

All Jupiter machine tools are laser pitch error compensated and ball bar inspected both before leaving the factory and at time of installation on the customer’s floor. You deserve micron precision.

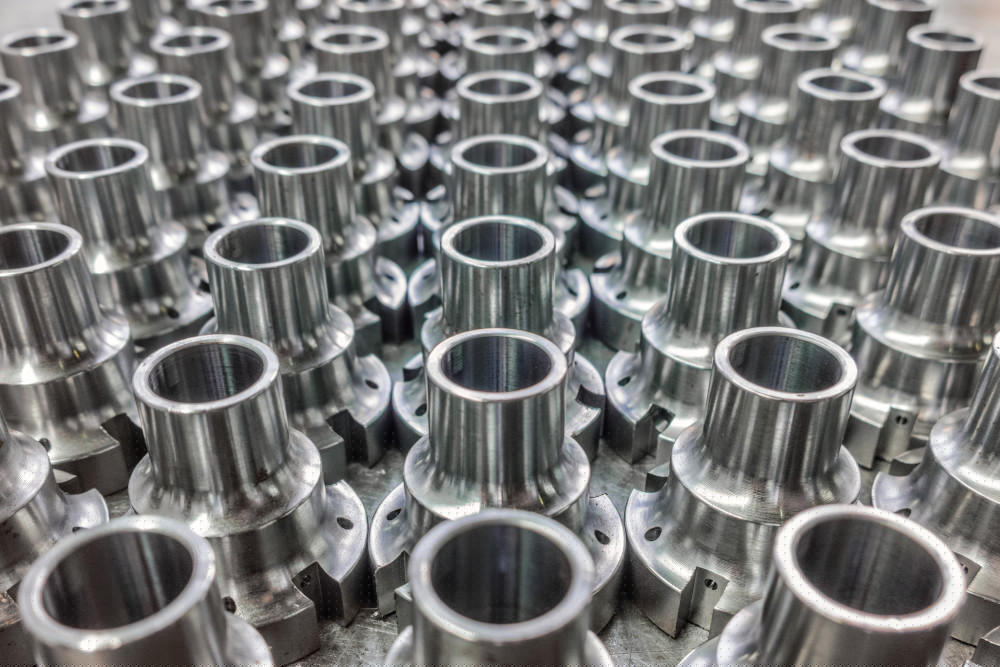

Faultless Reliability

Jupiter components are always chosen with long-term reliability in mind, so that you don’t need to keep reliability in your mind. New Jupiter machines come standard with a two year manufacturer’s warranty… but you won’t need it!

Product Gallery

Specifications, Standard Features, & Options

Roller Linear Guideways provide superior strength and durability under load in all 4 directions.

Jupiter’s C-frame vertical machining centers are available in a wide range of sizes in both roller linear and box guideway configurations. Standard spindles are high horsepower, direct drive CAT-40 dual contact while the largest VMCs feature geared CAT-50 arrangements. Jupiter’s default CNC control package is the Fanuc 0i-MF Plus Alpha platform. Alternative CNC brands such as Heidenhain, Seimens, Mitsubishi, and others are available upon request. 4th and 5th axis pre-wiring is standard, and rotary or trunnion add-ons are provided by certified partners such as Lyndex-Nikken and Detron.

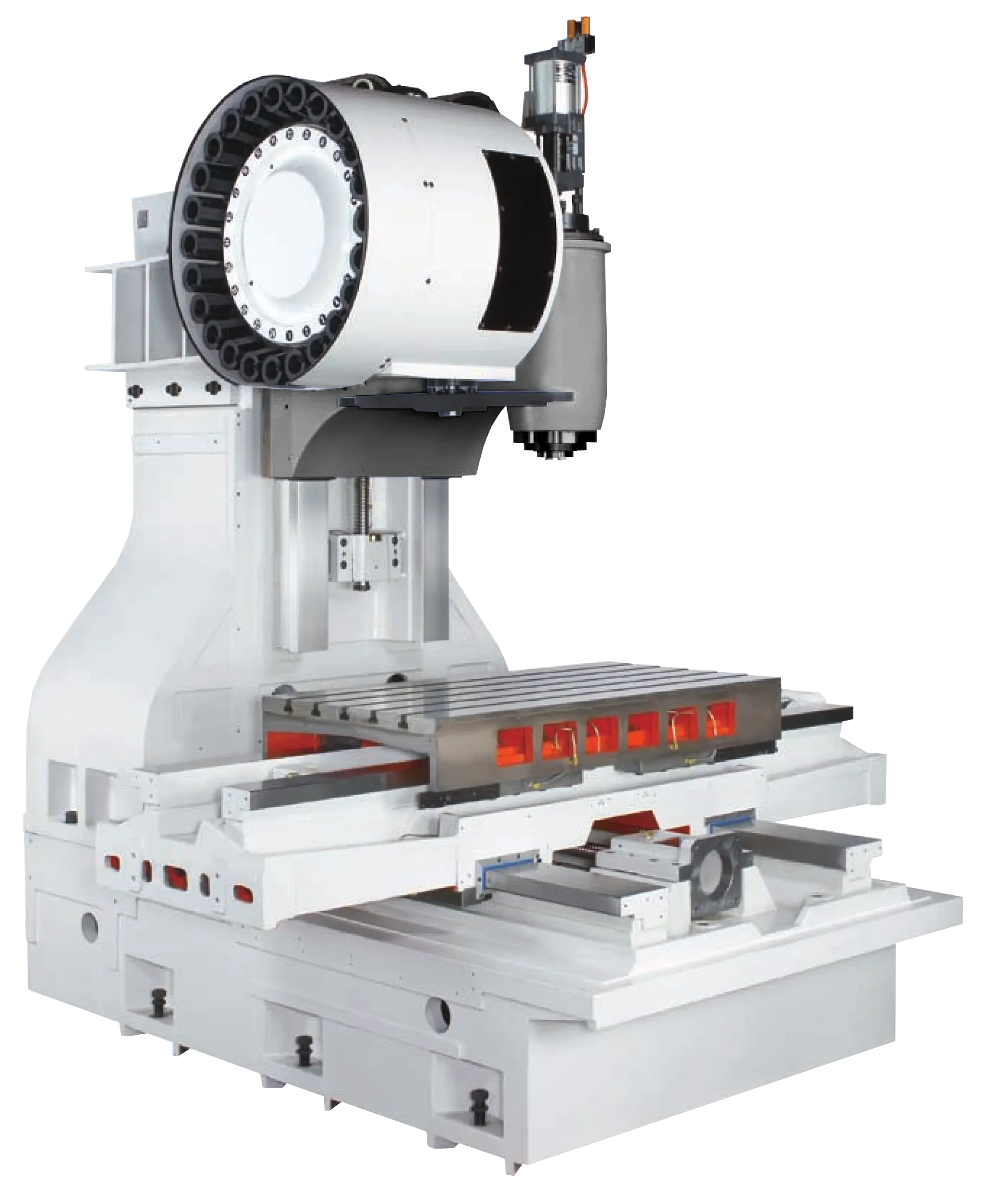

The VMC-4328B‘s robust design includes a flared column and ultra-wide box ways with Rulon coatings.

SPECIFICATIONS UNIT JTC-2015 JTC-2016T JTC-2816 JTC-3022T
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis in 19.69 19.69 27.56 29.53
Y Axis in 14.96 15.75 15.75 21.65
Z Axis in 15.75 13.78 15.75 19.69
MOTION Way Type Roller Linear Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis ipm 2,362 2,362 2,362 2,362
Rapid Traverse – Y Axis ipm 2,362 2,362 2,362 2,362
Rapid Traverse – Z Axis ipm 2,362 2,362 2,362 2,362
TABLE Pallet Count 1 2 1 2
Width in 25.59 26.77 33.46 29.53
Depth in 14.96 15.75 15.75 19.69
Max Load lb 440 330 x 2 660 770 x 2
SPINDLE Drive Type Direct Drive Direct Drive Direct Drive Direct Drive
Motor Power hp 7.5 7.5 7.5 25
Taper BT-30 BT-30 BT-30 CAT-40 DC
Speed rpm 15,000 15,000 15,000 12,000
Optional Speed rpm 20,000
24,000
20,000
24,000
20,000
24,000
15,000
ATC Capacity Tools 20 24 20 30
Max Tool Weight lb 6.6 6.6 6.6 17.6
Max Tool Dia. – Adj. Occupied in 2.36 2.48 2.36 2.95
Max Tool Dia. – Adj. Empty in 3.94 5.12 3.94 5.31
Max Tool Length in 7.87 7.87 7.87 9.84
DIMENSIONS Machine Weight lb 6,160 8,800 6,820 22,000
Width in 64 64 83 137
Depth in 85 106 95 111
Height in 94 109 94 115
Current kVA 15 20 15 40
SPECIFICATIONS UNIT JTC-2015 JTC-2016T JTC-2816 JTC-3022T
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis mm 500 500 700 750
Y Axis mm 380 400 400 550
Z Axis mm 400 350 400 500
MOTION Way Type Roller Linear Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis m/min 60 60 60 60
Rapid Traverse – Y Axis m/min 60 60 60 60
Rapid Traverse – Z Axis m/min 60 60 60 60
TABLE Pallet Count 1 2 1 2
Width mm 650 680 850 750
Depth mm 380 400 400 500
Max Load kg 200 150 x 2 300 350 x 2
SPINDLE Drive Type Direct Drive Direct Drive Direct Drive Direct Drive
Motor Power kW 5.5 5.5 5.5 18.5
Taper BT-30 BT-30 BT-30 CAT-40 DC
Speed rpm 15,000 15,000 15,000 12,000
Optional Speed rpm 20,000
24,000
20,000
24,000
20,000
24,000
15,000
ATC Capacity Tools 20 24 20 30
Max Tool Weight kg 3 3 3 8
Max Tool Dia. – Adj. Occupied mm 60 63 60 75
Max Tool Dia. – Adj. Empty mm 100 130 100 135
Max Tool Length mm 200 200 200 250
DIMENSIONS Machine Weight kg 2,800 4,000 3,100 10,000
Width mm 1,650 1,600 2,100 3,500
Depth mm 2,200 2,700 2,400 2,800
Height mm 2,400 2,800 2,400 2,900
Current kVA 15 20 15 40
SPECIFICATIONS UNIT VMC-3016 VMC-3420 VMC-4022 VMC-5920
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis in 29.53 33.46 40.16 59.06
Y Axis in 15.75 19.69 21.65 20.08
Z Axis in 17.72 20.08 20.08 20.08
MOTION Way Type Roller Linear Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis ipm 1,890 1,890 1,890 1,890
Rapid Traverse – Y Axis ipm 1,890 1,890 1,890 1,890
Rapid Traverse – Z Axis ipm 1,260 1,260 1,260 1,260
TABLE Width in 35.43 39.37 47.24 61.81
Depth in 15.75 17.72 20.87 19.69
Max Load lb 1,100 1,100 1,320 1,320
SPINDLE Drive Type Direct Drive Direct Drive Direct Drive Direct Drive
Motor Power hp 44 44 44 44
Taper CAT-40 DC CAT-40 DC CAT-40 DC CAT-40 DC
Speed rpm 12,000 12,000 12,000 12,000
Optional Speed rpm 15,000 15,000 15,000 15,000
ATC Capacity Tools 30 30 30 30
Max Tool Weight lb 15.4 15.4 15.4 15.4
Max Tool Dia. – Adj. Occupied in 3.15 3.15 3.15 3.15
Max Tool Dia. – Adj. Empty in 4.92 4.92 4.92 4.92
Max Tool Length in 11.81 11.81 11.81 11.81
DIMENSIONS Machine Weight lb 11,440 11,440 14,300 14,960
Width in 107 107 111 158
Depth in 85 85 95 104
Height in 104 104 111 101
Current kVA 40 40 40 45
SPECIFICATIONS UNIT VMC-3016 VMC-3420 VMC-4022 VMC-5920
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis mm 750 850 1,020 1,500
Y Axis mm 400 500 550 510
Z Axis mm 450 510 510 510
MOTION Way Type Roller Linear Roller Linear Roller Linear Roller Linear
Rapid Traverse – X Axis m/min 48 48 48 48
Rapid Traverse – Y Axis m/min 48 48 48 48
Rapid Traverse – Z Axis m/min 32 32 32 32
TABLE Width mm 900 1,000 1,200 1,570
Depth mm 400 450 530 500
Max Load kg 500 500 600 600
SPINDLE Drive Type Direct Drive Direct Drive Direct Drive Direct Drive
Motor Power kW 33 33 33 33
Taper BBT-40 BBT-40 BBT-40 BBT-40
Speed rpm 12,000 12,000 12,000 12,000
Optional Speed rpm 15,000 15,000 15,000 15,000
ATC Capacity Tools 30 30 30 30
Max Tool Weight kg 7 7 7 7
Max Tool Dia. – Adj. Occupied mm 80 80 80 80
Max Tool Dia. – Adj. Empty mm 125 125 125 125
Max Tool Length mm 300 300 300 300
DIMENSIONS Machine Weight kg 5,200 5,200 6,500 6,800
Width mm 2,700 2,700 2,800 4,000
Depth mm 2,135 2,135 2,405 2,630
Height mm 2,635 2,635 2,800 2,560
Current kVA 40 40 40 45
SPECIFICATIONS UNIT VMC-4020B VMC-4328B VMC-6332B VMC-7132B VMC-8030B
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis in 39.76 43.31 62.99 70.87 79.92
Y Axis in 19.69 27.56 31.50 31.50 29.92
Z Axis in 20.47 23.62 31.50 31.50 29.92
MOTION Way Type Rulon Box Way Rulon Box Way Rulon Box Way Rulon Box Way Rulon Box Way
Rapid Traverse – X Axis ipm 945 787 591 591 591
Rapid Traverse – Y Axis ipm 945 787 591 591 591
Rapid Traverse – Z Axis ipm 945 787 472 472 472
TABLE Width in 47.24 47.24 66.93 78.74 80.71
Depth in 17.72 27.56 31.50 31.50 30.00
Max Load lb 1,320 1,760 4,400 4,840 5,280
SPINDLE Drive Type Direct Drive Direct Drive Geared Geared Geared
Motor Power hp 44 44 30 30 30
Taper CAT-40 DC CAT-40 DC CAT-50 CAT-50 CAT-50
Speed rpm 12,000 12,000 8,000 8,000 8,000
Optional Speed rpm 15,000 15,000
ATC Capacity Tools 30 30 30 30 30
Max Tool Weight lb 15.4 15.4 33 33 33
Max Tool Dia. – Adj. Occupied in 3.15 3.15 5.12 5.12 5.12
Max Tool Dia. – Adj. Empty in 4.92 4.92 9.84 9.84 9.84
Max Tool Length in 11.81 11.81 13.78 13.78 13.78
DIMENSIONS Machine Weight lb 11,880 20,460 30,800 33,000 35,200
Width in 107 128 174 197 217
Depth in 103 101 132 132 132
Height in 104 116 119 119 119
Current kVA 40 40 45 45 45
SPECIFICATIONS UNIT VMC-4020B VMC-4328B VMC-6332B VMC-7132B VMC-8030B
CNC SYSTEM Control Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+ Fanuc 0i-MF+
Configuration 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel 15″ Touchpanel
Motors & Amps Alpha Class Alpha Class Alpha Class Alpha Class Alpha Class
TRAVEL X Axis mm 1,010 1,100 1,600 1,800 2,030
Y Axis mm 500 700 800 800 760
Z Axis mm 520 600 800 800 760
MOTION Way Type Rulon Box Way Rulon Box Way Rulon Box Way Rulon Box Way Rulon Box Way
Rapid Traverse – X Axis m/min 24 20 15 15 15
Rapid Traverse – Y Axis m/min 24 20 15 15 15
Rapid Traverse – Z Axis m/min 24 20 12 12 12
TABLE Width mm 1,200 1,200 1,700 2,000 2,050
Depth mm 450 700 800 800 762
Max Load kg 600 800 2,000 2,200 2,400
SPINDLE Drive Type Direct Drive Direct Drive Geared Geared Geared
Motor Power kW 33 33 22 22 22
Taper BBT-40 BBT-40 BT-50 BT-50 BT-50
Speed rpm 12,000 12,000 8,000 8,000 8,000
Optional Speed rpm 15,000 15,000
ATC Capacity Tools 30 30 30 30 30
Max Tool Weight kg 7 7 15 15 15
Max Tool Dia. – Adj. Occupied mm 80 80 130 130 130
Max Tool Dia. – Adj. Empty mm 125 125 250 250 250
Max Tool Length mm 300 300 350 350 350
DIMENSIONS Machine Weight kg 5,400 9,300 14,000 15,000 16,000
Width mm 2,700 3,240 4,400 5,000 5,500
Depth mm 2,610 2,560 3,350 3,350 3,350
Height mm 2,635 2,930 3,020 3,020 3,020
Current kVA 40 40 45 45 45
  • 4th Axis pre-wiring
  • 5th Axis pre-wiring
  • Air gun
  • Air reservoir for ATC
  • Automatic lubrication
  • Automatic power-off
  • Automatic Tool Changer
  • Chip conveyor, auger type
  • Chip conveyor, chain type
  • Chip conveyor, magnetic
  • Coolant gun
  • Coolant system
  • Coolant thru spindle w/ filter and tank @ 300 PSI or 1000 PSI
  • Enclosed splash guard
  • Extended Z-column
  • Fanuc 0i-MF Plus with 15” LCD Touchscreen
  • Fanuc Data Server (2 GB)
  • Leveling bolts and pads
  • Oil mist collector
  • Oil skimmer
  • Pallet changer (VMC-4020B)
  • Remote MPG
  • Rigid tapping
  • RS-232, USB, and CAT-5 interfaces
  • Sidewall washdown (2 pumps)
  • Spindle air blast
  • Spindle oil cooler
  • Spindle – 12,000 rpm Direct Drive CAT-40 Dual Contact (Big Plus)
  • Spindle – 8,000 rpm Geared CAT-50
  • Toolbox & adjustment tools
  • Transformer
  • Work air blast
  • Work lamp

Machine specifications published for reference only and are subject to change without notice. Not all features available on all models. Always see your local Jupiter representative for up-to-date information.
